What are drone jammers?
A drone jammer is a device designed to interfere with and control drones to protect critical areas from drone threats. It can interfere with a drone's communication signals, navigation systems, or sensors, causing it to lose control, become disoriented, or be unable to perform its mission. Drone jammers are commonly used in military, security, counterterrorism, and other areas that need protection.
Types of drone jammers
There are two main types of drone jammers: RF jammers and GPS jammers.
RF jammers: These drone jamming devices specifically target the radio frequencies used for drone communications. RF jammers can transmit signals at a variety of frequencies, including those commonly used by consumer drones. Most consumer drones operate in the 2.4 GHz or 5.8 GHz bands, and RF jammers can interfere with these communications, effectively immobilizing the drone.
GPS jammers: Unlike RF jammers, GPS jammers focus on interfering with the global positioning system signals that drones use for navigation. By transmitting stronger signals on the same frequencies used by GPS satellites (usually between 1.1 GHz and 1.6 GHz), these jammers can mislead or disable a drone's navigation system. This can cause the drone to be unable to determine its location, resulting in erratic flight behavior or forcing it to land. GPS jammers are particularly useful for targeting drones that rely heavily on satellite navigation for operation.
what frequency do drones use?
The best drone jammers utilize a range of frequencies, the most common being 2.4 GHz and 5.8 GHz. These frequencies are widely used for commercial drone operations, especially consumer models.
A: First of all, let's look at the remote control and image transmission frequency bands
2.4 GHz frequency: This is a common frequency for Wi-Fi devices and many drone controllers. It can extend the range and effectively penetrate obstacles. However, this frequency can become crowded due to many devices operating in the same band, which makes jamming the signal more challenging. The protocol is applicable to Wi-Fi, Bluetooth, FHSS (Frequency Hopping Spread Spectrum).
5.8 GHz frequency: This frequency is commonly used for video transmission between drones and their operators. High-definition image transmission or backup remote control link (such as some DJI models). Interference with this frequency may disrupt real-time video transmission, which is critical for drone operations, especially in aerial photography and surveillance. It is characterized by strong anti-interference ability, but weaker penetration than 2.4GHz.
For anyone involved in security and anti-drone operations, it is essential to understand what drone jammers are, including their functions and types. Jamming drones plays an important role in protecting important areas from unauthorized drone intrusions, ensuring safety in the increasingly drone-infested skies.
433 MHz / 915 MHz (civilian radio band) frequency: its use is applicable to some industrial drones or long-distance remote control (such as LoRa protocol)
B: From the perspective of satellite navigation band
GPS L1 band: 1575.42 MHz is applicable to the core band of the global positioning system (GPS). The drone will lose its positioning after interference.
GLONASS L1 band: 1602 MHz is applicable to the Russian navigation system, and some drones are compatible.
Beidou B1 band: 1561.098 MHz is applicable to China's Beidou navigation system.
What role does the drone jammer play in the drone countermeasure system?
The drone countermeasure system is a system used to detect, locate and interfere with drones, designed to protect the security of key areas. The drone jammer is an important part of the drone countermeasure system, which can play the following roles:
1. Interfere with drone communication signals:
Drones usually use radio communications for command transmission and control. Drone jammers can emit jamming signals to interfere with the communication between drones and ground control stations, making drones lose the ability to receive and execute instructions, thereby protecting the safety of key areas.
2. Interference with drone navigation systems: Drones rely on the Global Positioning System (GPS) for navigation and positioning. Drone jammers can emit GPS jamming signals to disable the navigation system of drones, making it unable to accurately obtain location information and navigation instructions, thereby preventing them from entering or remaining in dangerous areas.
3. Interference with drone sensors: Drones use various sensors to sense and collect environmental information to perform tasks or avoid obstacles. Drone jammers can emit jamming signals to interfere with the normal operation of drone sensors, making it unable to accurately perceive the surrounding environment, thereby reducing its ability to perform tasks.
4. Control drones: Some drone jammers also have the ability to control drones. They can take over control of drones by interfering with their communication signals, directing them to a safe area or forcing them to land.
Advantages of Military Drone Jammers in Protecting Sensitive Areas
Deploying jamming drone technology in a military setting provides several significant advantages:
Enhanced Security: Military drone jammers prevent unauthorized drones from entering sensitive areas, creating a secure environment. This is particularly important for protecting critical infrastructure such as missile silos, command and control centers, and troop concentrations.
Rapid Response Capability: Military jammers can be deployed quickly to respond to drone threats, allowing for timely intervention in critical situations. This rapid response capability is critical in dynamic combat environments where threats may emerge unexpectedly.
Cost-Effective Solution: Utilizing jamming drone technology is often more cost-effective than traditional countermeasures. Rather than deploying complex weapon systems to eliminate drones jammers can effectively disable them without causing collateral damage to surrounding areas.
Minimizing Risk to Personnel: Military drone jammers minimize risk to personnel by eliminating threats at a distance. Operators can respond to drone threats without being directly confronted.
Data Protection: Military jammers prevent drones from capturing images or data from secure locations, helping to protect sensitive information. This protection is essential to maintaining operational security and the confidentiality of mission-critical information.
Military drone jammers play a vital role in modern warfare and security operations. By effectively disrupting unauthorized drone communications, jammer drone technology enhances the military's ability to protect sensitive areas and personnel, ensuring they can operate effectively in an increasingly complex aerial environment.

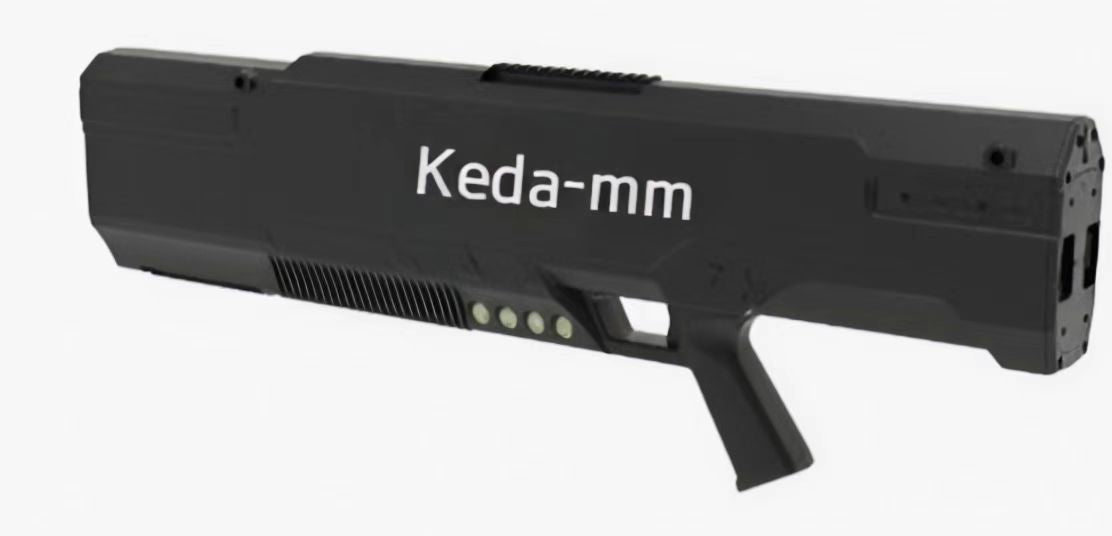

Keda has been specialized in the development of military drones for many years. If you need it, you can click to view:
