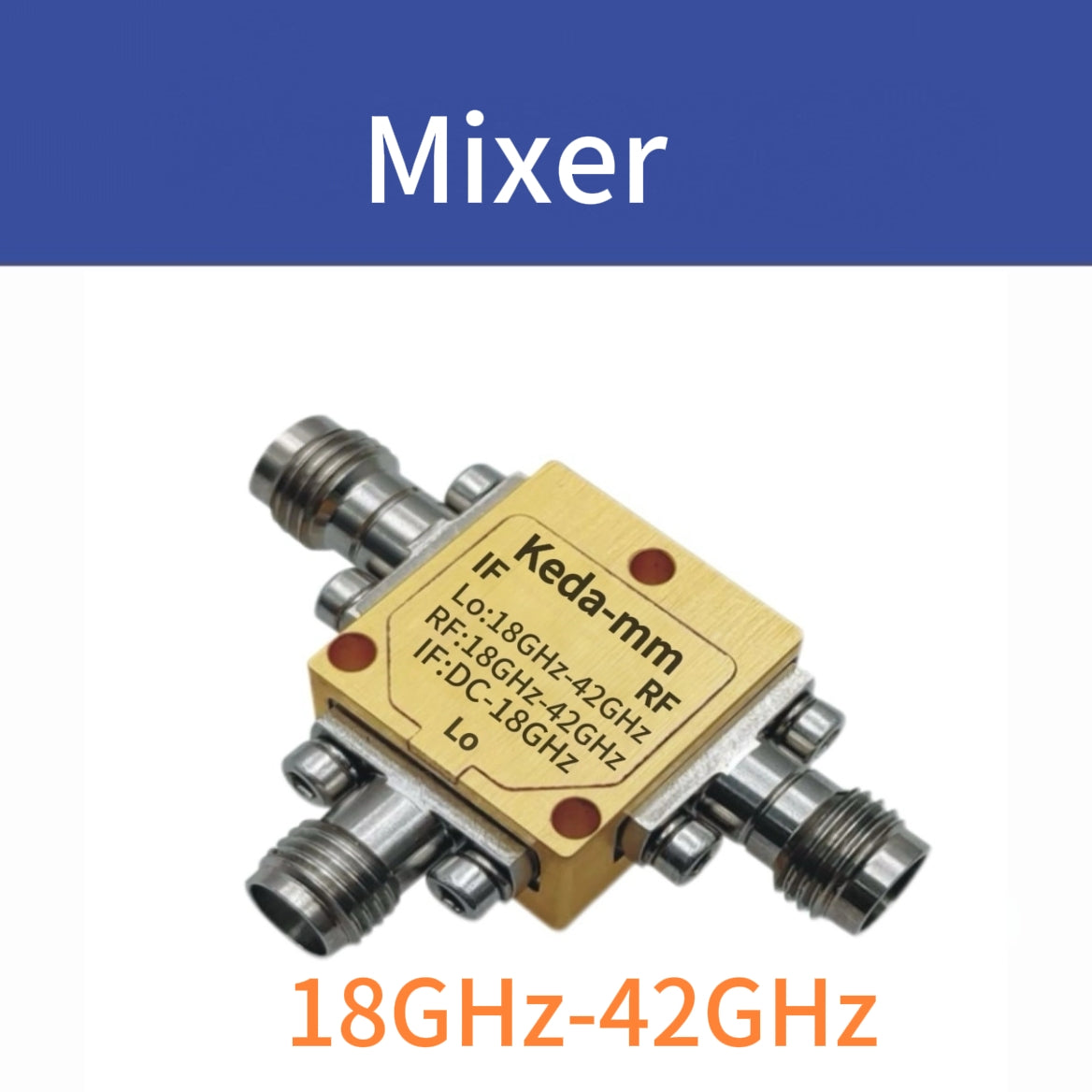

Passive Double Balanced Mixer High frequency Mixer 18-42G
Frequency range：18.0-42.0GHz
IF band：DC-18.0GHz
Frequency conversion loss：8.0dB (typical value)
LO-RF Isolation：35dBc (typical value)
RF-IF isolation：30dBc (typical value)
LO-IF isolation：40dBc (typical value)
LO Power：16dBm
Input/Output Matching：50Ω
Device size：1.2mm× 0.9mm×0.1mm
Couldn't load pickup availability
Fast & Free Shipping
Fast & Free Shipping
Add some general information about your delivery and shipping policies.
Warranty
Warranty
Display general product information or specific product information using metafields.
Download Files
- Mixer 18-42G Download
Passive Double Balanced Mixer High frequency Mixer 18-42G
- Overview
- Applications
- Specification
- Comparison
- Reviews
- FAQs
Product Overview
Applications
-
Wireless communication systems
-
Satellite communication
-
Radar system
-
Test and measurement equipment
-
Internet of Things (IoT) equipment
