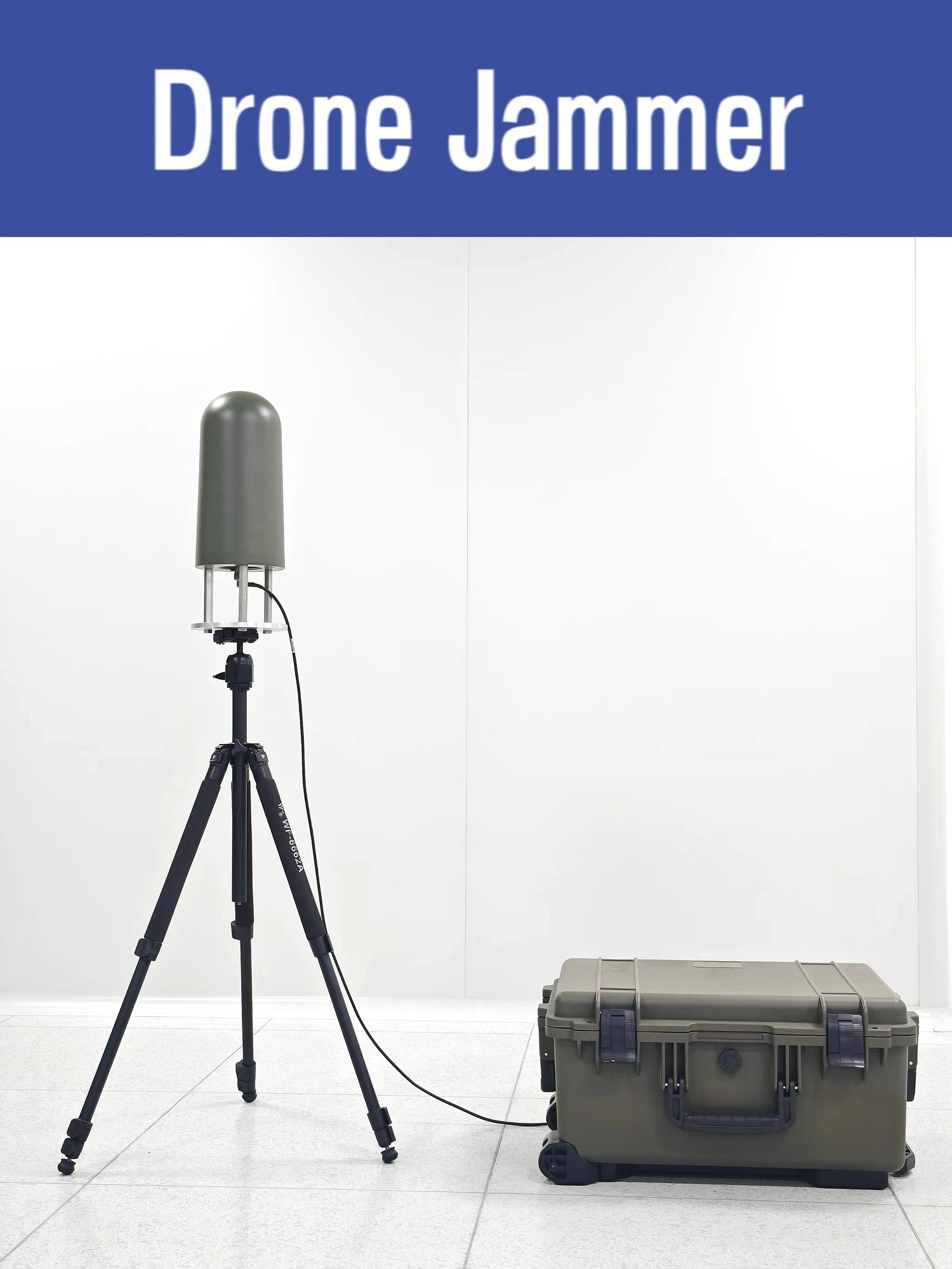

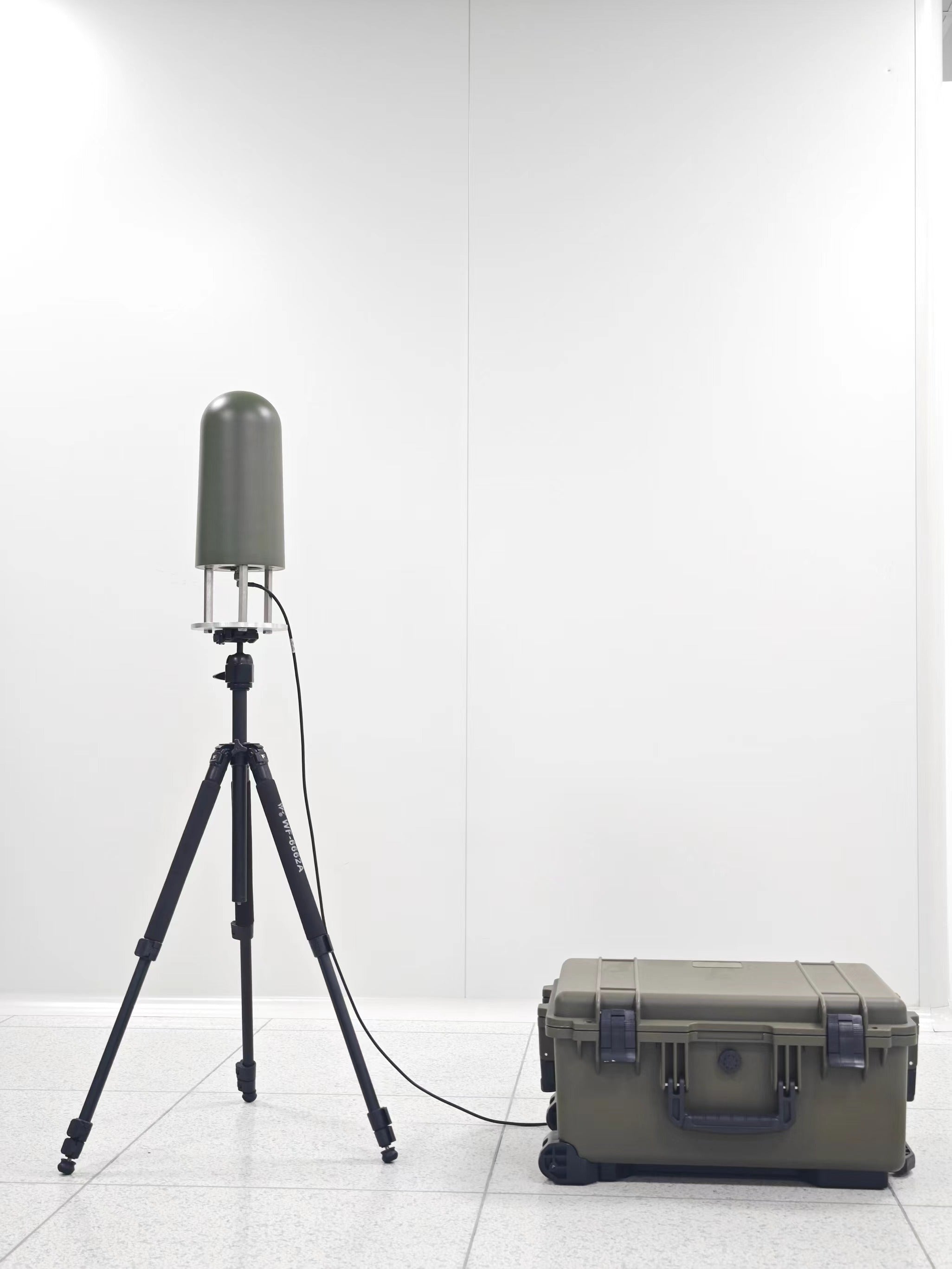

KEDA-MM Full-band detection equipment 30MHz-6GHz Drone Jammer

Name: KEDA-MM Full-band detection equipment 30MHz-6GHz Drone Jammer
Brand: Microwave-store
Price: 12323.08 SGD
Availability: InStock

$12,323.08 SGD

Shipping calculated at checkout.

Performance Characteristics

Frequency range: 30MHz-6GHz
Interference band: drone control/navigation band, 2G/3G/4G/5Gmobile communication band, Wi-Fi/Bluetooth, etc.
Output power: 10w-100W (adjustable)
Interference distance: 500m-3km (depending on environment and power setting)
Working mode: continuous interference/pulse interference/intelligent scanning interference
Power supply: AC 220V/DC 12-24V /lithium battery (optional)
Battery life: 4-8 hours (full power operation)
Working temperature:-20℃~+55°C
Protection level: lP65 (dustproof and waterproof)
Equipment weight: host ≤15kg (including battery)
Control method: local touch screen/remote wireless control

Description

The 30MHz-6GHz full-band jammer is a high-performance, versatile radio signal jamming system. Utilizing advanced RF jamming technology, it effectively covers a wide range of frequencies, from 30MHz to 6GHz, including drone communication bands (such as 2.4GHz, 5.8GHz, GPS L1/L2, etc.) as well as 2G/3G/4G/5G mobile communication signals.

Fast & Free Shipping

Free Air Shipping Over $109.99（China Post only）If the China post cannot deliver, other logistics need to pay extra postage delivery

Other

Bulk Purchase Tips: Please confirm the specific quantity and product information with the salesperson before purchasing.

Download Files

30MHz-6GHz Download

Overview
Applications
Specification
Comparison
Reviews

Liquid error (snippets/yg-tab-button line 123): Could not find asset snippets/price-list.liquid

Product Overview

Introduction: The 30MHz-6GHz full-band jammer is a high-performance, multi-functional radio signal jammer system designed for modern security protection needs.This device uses advanced radio frequency jammer technology and can effectively cover a wide range of frequency bands from 30MHz to 6GHz, including drone communication bands (such as 2.4GHz, 5.8GHz, GPSL1/L2, etc.) and 2G/3G/4G/5G mobile communication signals.The device transmits strong jammer signals in a specific frequency band to achieve comprehensive electromagnetic control of the target area, ensuring that sensitive areas are protected from illegal wireless signal intrusion and theft threats.

Performance Characteristics

Frequency range

30MHz-6GHz

Interference band

drone control/navigation band, 2G/3G/4G/5Gmobile communication band, Wi-Fi/Bluetooth, etc.

Output power

10w-100W (adjustable)

Interference distance

500m-3km (depending on environment and power setting)

Working mode

continuous interference/pulse interference/intelligent scanning interference

Power supply

AC 220V/DC 12-24V /lithium battery (optional)

Battery life

4-8 hours (full power operation)

Working temperature

-20℃~+55°C

Product Comparison

A table comparing the facets of 3 products
Facet	RF switch SW-SSP-20G 0 to 20 GHz SMA Female connector View details	KEDA-MM Sweep source SF-2.4G/5.8G-WB200M 2.4GHz/5.8GHz Dual-channel View details	KEDA-MM DRD-2.4G-30W-A Drone Disturbance Device 2300M~2500MHz power amplifiers signal jammer View details
Frequency range
Frequency range	DC~20GHz	2.4GHz/5.8GHz	2300M~2500MHz
Interference band
Interference band	3.5dB@20GHz (typical value)	8dB/10dB	40dB
Output power
Output power	0.5~31.5dB	5V/100mA(typical value)	28V/5A
Interference distance
Interference distance	0.1dB (typical value)	-	30W
Working mode
Working mode	-15dB (typical value)	-	1305016±0.1mm
Power supply
Power supply	-5V/7.2mA (typical value)	-	-
Battery life
Battery life	≤25dBm	-	-
Working temperature
Working temperature	30ns	-	-
