Integrated Circuit Die Chips KDA16271
Couldn't load pickup availability
Fast & Free Shipping
Fast & Free Shipping
Free Air Shipping Over SGD 109.99๏ผChina Post only๏ผIf the China post cannot deliver, other logistics need to pay extra postage delivery
Other
Other
Bulk Purchase Tips: Please confirm the specific quantity and product information with the salesperson before purchasing.
Download Files
- KDA16271 Download

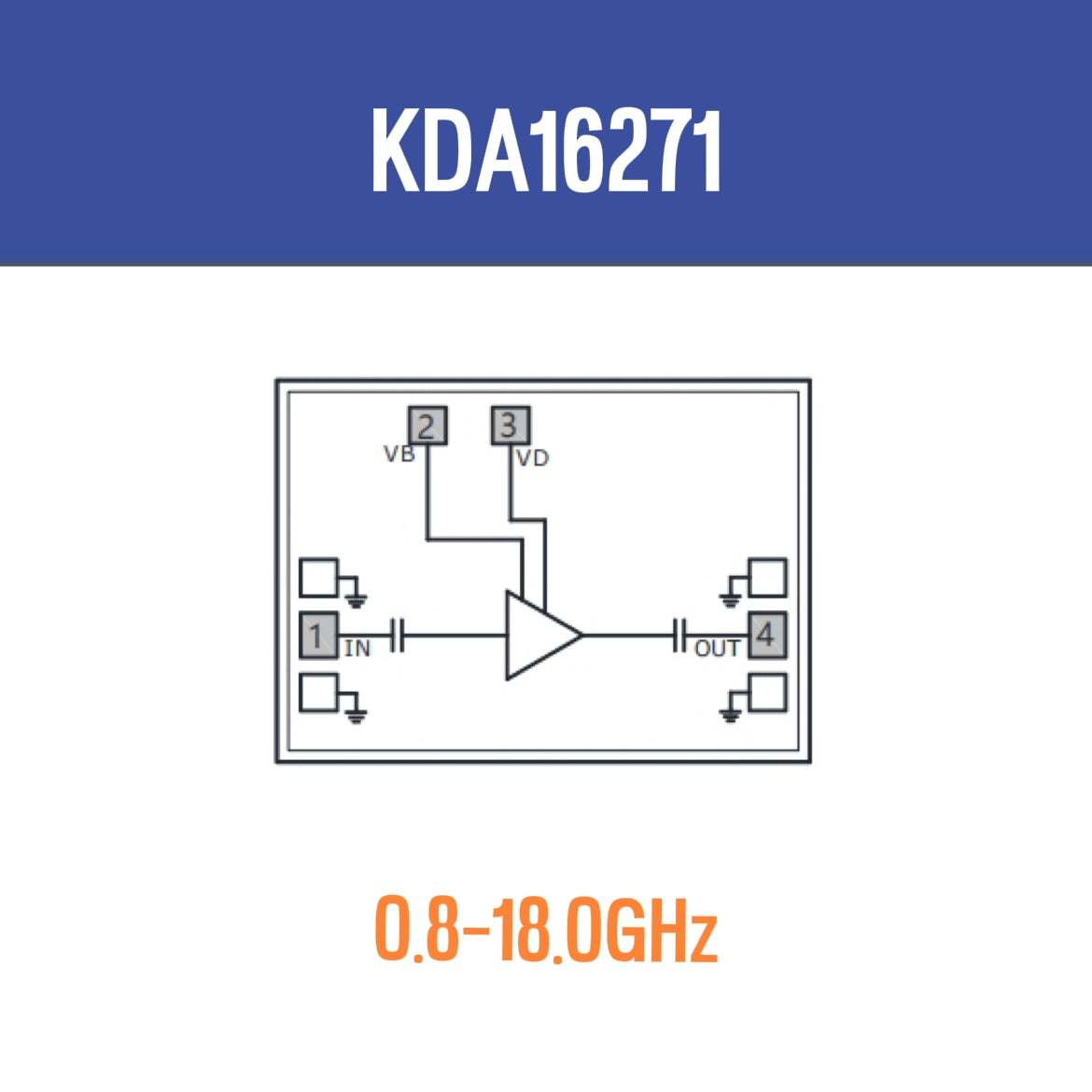

Integrated Circuit Die Chips KDA16271
- Overview
- Applications
- Specification
- Comparison
- Reviews
Product Overview
Applications
-
Wireless communication systems
-
Satellite communication
-
Radar system
-
Test and measurement equipment
-
Internet of Things (IoT) equipment
Three working modes
high power, medium power and low Performance Characteristics power
Frequency range
0.8-18.0GHz
Small signal gain
14.5dB๏ผTypical Value๏ผ
Noise figure
1.6dB๏ผTypical Value๏ผ
P-1dB output power
13.5dBm๏ผTypical Value๏ผ
Saturated output power
15.9dBm๏ผTypical Value๏ผ
Output OIP3
28.5dBm๏ผTypical Value๏ผ
Power supply conditions
+5V/39mA๏ผTypical Value๏ผ
Product Comparison
| Facet |
KEDA-MM DRD-2.4G-30W-A Drone Disturbance Device 2300M~2500MHz power amplifiers signal jammer View details | ||
|---|---|---|---|
| Three working modes | |||
| Three working modes | DC~20GHz | 2.4GHz/5.8GHz | 2300M~2500MHz |
| Frequency range | |||
| Frequency range | 3.5dB@20GHz (typical value) | 8dB/10dB | 40dB |
| Small signal gain | |||
| Small signal gain | 0.5~31.5dB | 5V/100mA(typical value) | 28V/5A |
| Noise figure | |||
| Noise figure | 0.1dB (typical value) | - | 30W |
| P-1dB output power | |||
| P-1dB output power | -15dB (typical value) | - | 130*50*16ยฑ0.1mm |
| Saturated output power | |||
| Saturated output power | -5V/7.2mA (typical value) | - | - |
| Output OIP3 | |||
| Output OIP3 | โค25dBm | - | - |
| Power supply conditions | |||
| Power supply conditions | 30ns | - | - |
