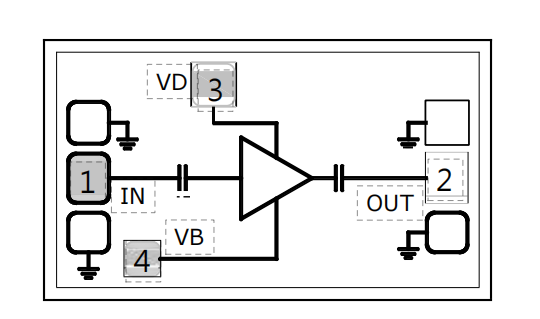

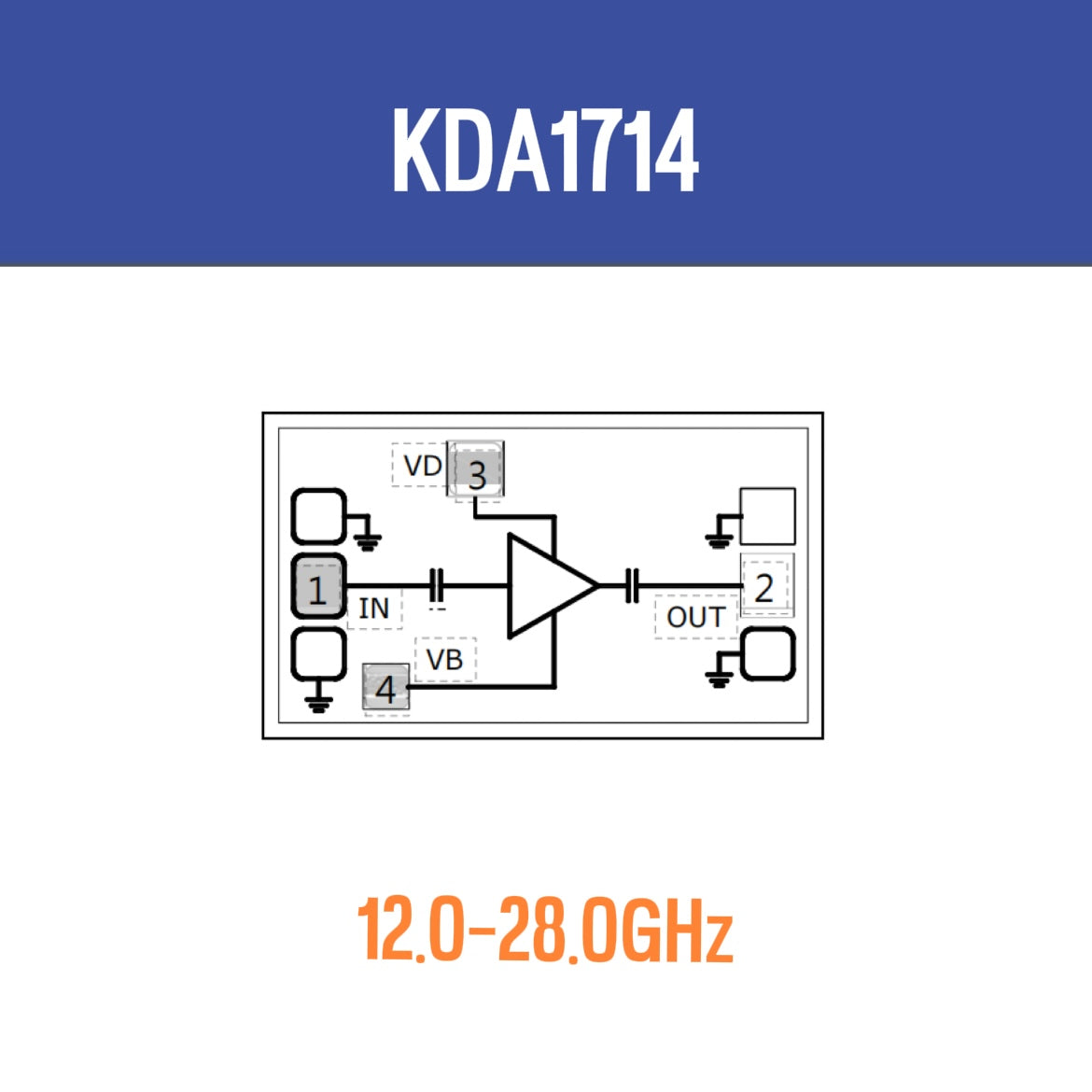

Integrated Circuit Die Chips KDA1714
- Overview
- Applications
- Specification
- Comparison
- Reviews
Product Overview
Applications
-
Wireless communication systems
-
Satellite communication
-
Radar system
-
Test and measurement equipment
-
Internet of Things (IoT) equipment
Two operating modes
high power and low power
Operating frequency
12.0-28.0GHz
Gain
19dB（Typical value）
Noise Figure
2.3dB（Typical value）
P-1dB Output power
14.5dBm（Typical value）
Saturated output power
15.5dBm（Typical value）
Output OIP3
26dBm（Typical value）
Power supply condition
+5V/40mA（Typical value）
