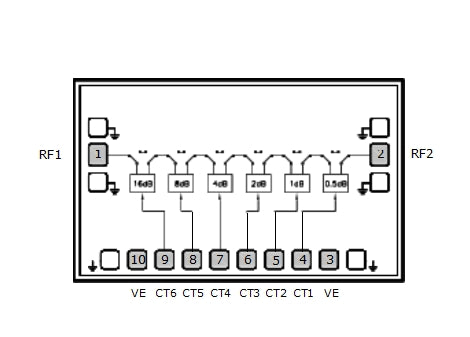

Integrated Circuit Die Chips KDA5808
$59.03 SGD
Unit price
/
Unavailable
Shipping calculated at checkout.
Frequency range： DC-45GHz
Insertion loss： 4.8dB@45GHz（Typical Value）
Attenuation：0.5-31.5dB
Attenuation accuracy（ RMS）：0.5（Typical Value）
Return loss ： −16dB（Typical Value）
Power supply ：−5V/6.7mA（Typical Value）
Linear working area： ≤23dBm
Switching time： 20ns
Chip size： 1.8mm×1.1mm×0.1mm
Couldn't load pickup availability
Fast & Free Shipping
Fast & Free Shipping
Free Air Shipping Over SGD 109.99（China Post only）If the China post cannot deliver, other logistics need to pay extra postage delivery
Other
Other
Bulk Purchase Tips: Please confirm the specific quantity and product information with the salesperson before purchasing.
Download Files
- KDA5808 Download
Integrated Circuit Die Chips KDA5808
$59.03 SGD
Unit price
/
Unavailable
- Overview
- Applications
- Specification
- Comparison
- Reviews
Product Overview
Applications
-
Wireless communication systems
-
Satellite communication
-
Radar system
-
Test and measurement equipment
-
Internet of Things (IoT) equipment
Performance Characteristics
Frequency range
DC-45GHz
Insertion loss
4.8dB@45GHz（Typical Value）
Attenuation
0.5-31.5dB
Attenuation accuracy（ RMS）
0.5（Typical Value）
Return loss
−16dB（Typical Value）
Power supply
−5V/6.7mA（Typical Value）
Linear working area
≤23dBm
Switching time
20ns
Product Comparison
| Facet |
KEDA-MM DRD-2.4G-30W-A Drone Disturbance Device 2300M~2500MHz power amplifiers signal jammer View details | ||
|---|---|---|---|
| Frequency range | |||
| Frequency range | DC~20GHz | 2.4GHz/5.8GHz | 2300M~2500MHz |
| Insertion loss | |||
| Insertion loss | 3.5dB@20GHz (typical value) | 8dB/10dB | 40dB |
| Attenuation | |||
| Attenuation | 0.5~31.5dB | 5V/100mA(typical value) | 28V/5A |
| Attenuation accuracy（ RMS） | |||
| Attenuation accuracy（ RMS） | 0.1dB (typical value) | - | 30W |
| Return loss | |||
| Return loss | -15dB (typical value) | - | 130*50*16±0.1mm |
| Power supply | |||
| Power supply | -5V/7.2mA (typical value) | - | - |
| Linear working area | |||
| Linear working area | ≤25dBm | - | - |
| Switching time | |||
| Switching time | 30ns | - | - |
